Water Management Solutions
Pressure, Level and Temperature Instrumentation
Engineered for the Demands of the Water Industry
Pressure, Level and Temperature Instrumentation Engineered for the Demands of the Water Industry
Barksdale provides customers with exceptional performance and long life in the most demanding applications. Whether a Municipal treatment plant operator or process skid manufacturer, you can rest easily knowing that over 75 years of experience has gone into the design, development and manufacture of our industrial Pressure, Level and Temperature sensors.
Pressure
- Transducers/Transmitters
- Electronic Switches
- Compact Mechanical Switches
- Mechanical Switches
Level
- Submersible Level (Hydrostatic Pressure) Transmitters
- Float Transmitters
- Bypass Indicators
- Electronic Float Switches
- Single and Multi-Point Float Switches
- NSF 61 Compliant Switches
Temperature
- Transducers/Transmitters
- Electronic Switches
- Electronic Thermostats
- Compact Mechanical Switches
- Mechanical Switches/Thermostats
PRESSURE
Precision pressure monitoring and control solutions for demanding water applications

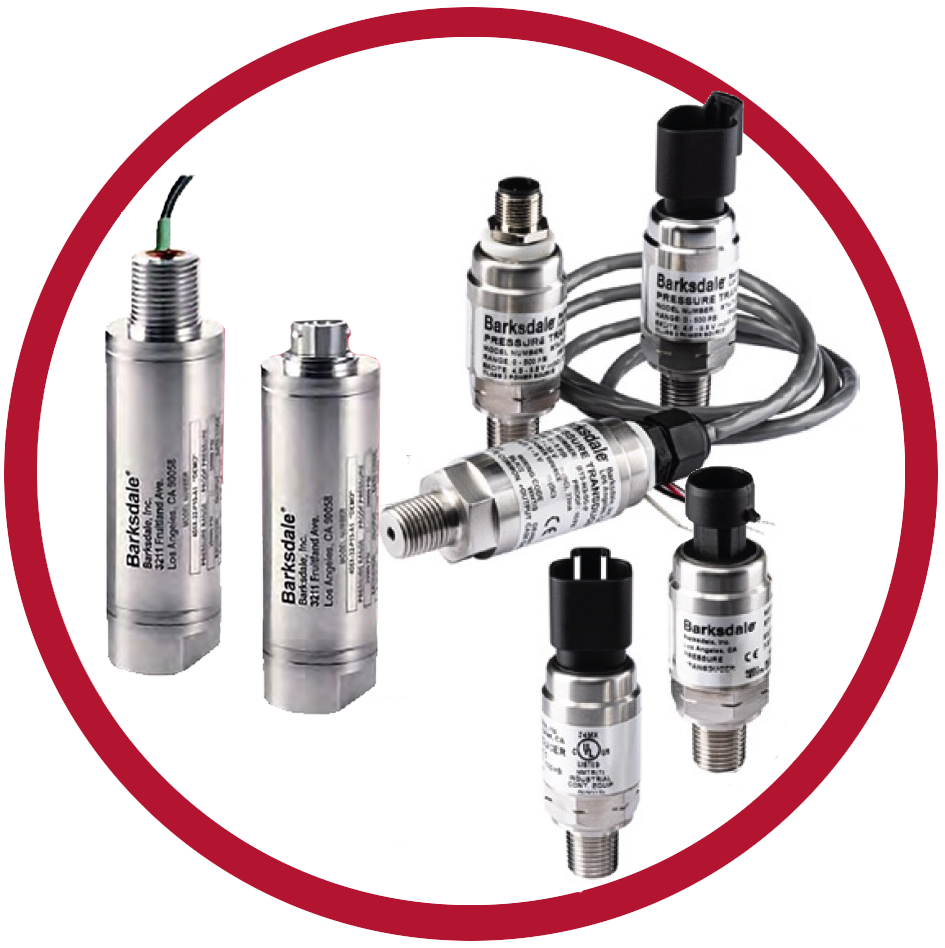

Transducers/Transmitters
- Gauge/Absolute Pressure Ranges from Vacuum to 30,000 PSI [2,000 bar]
- Available Accuracies: ±0.5%, ±0.25% and 0.1% FSO
- 4 to 20 mA, 1 to 5 Vdc or HART Outputs
- General Purpose, Intrinsically Safe and Explosion Proof Designs
- Customizable Electrical and Process Connections
- NEMA Type 4; IP66/IP67, UL and ATEX Approvals

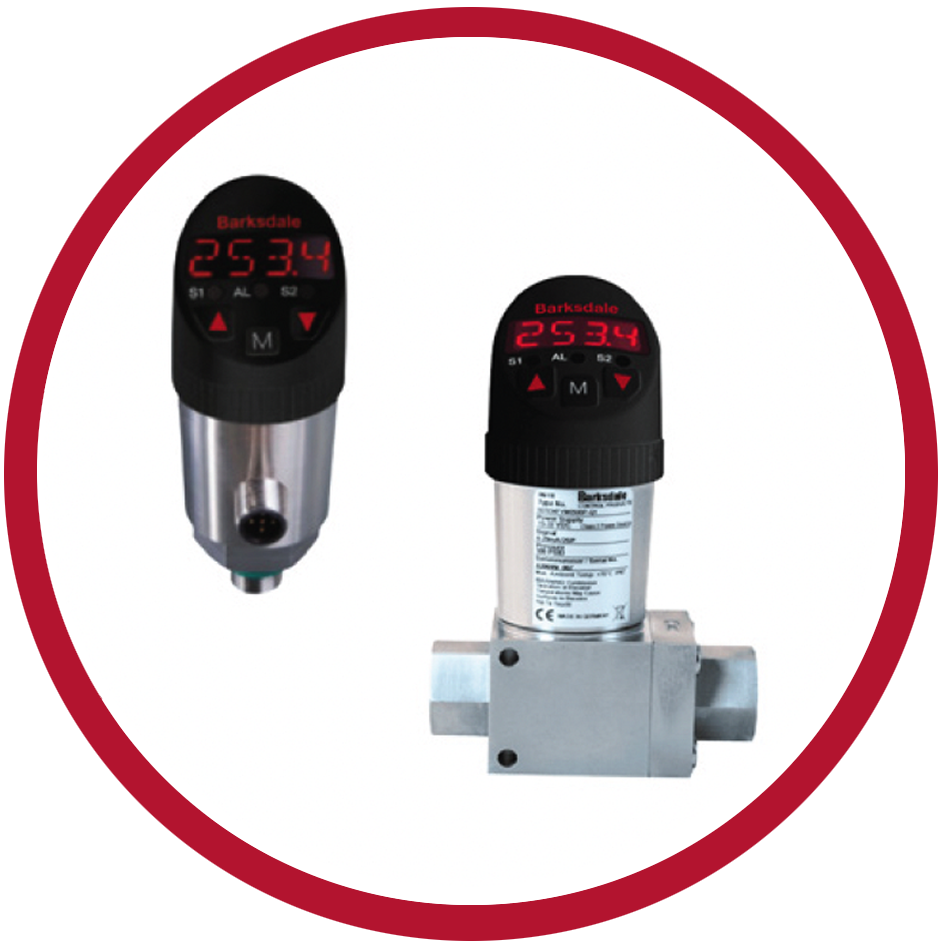

Electronic Switches
- 3-in-1 Capability: Switch, Gauge and Transmitter
- Gauge/Absolute Pressure Ranges from 3 to 9,000 PSI [0.2 to 620 bar]
- Differential Pressure Ranges from 5 to 500 PSI [0.35 to 35 bar]
- Single or Dual Switch Point Options
- 4 to 20 mA, 0 to 10 Vdc or IO-Link Outputs
- 320° Rotatable Multifunction Display
- Field Programmable via Tactile Keys
- NEMA Types 4X and 6; IP65/IP67

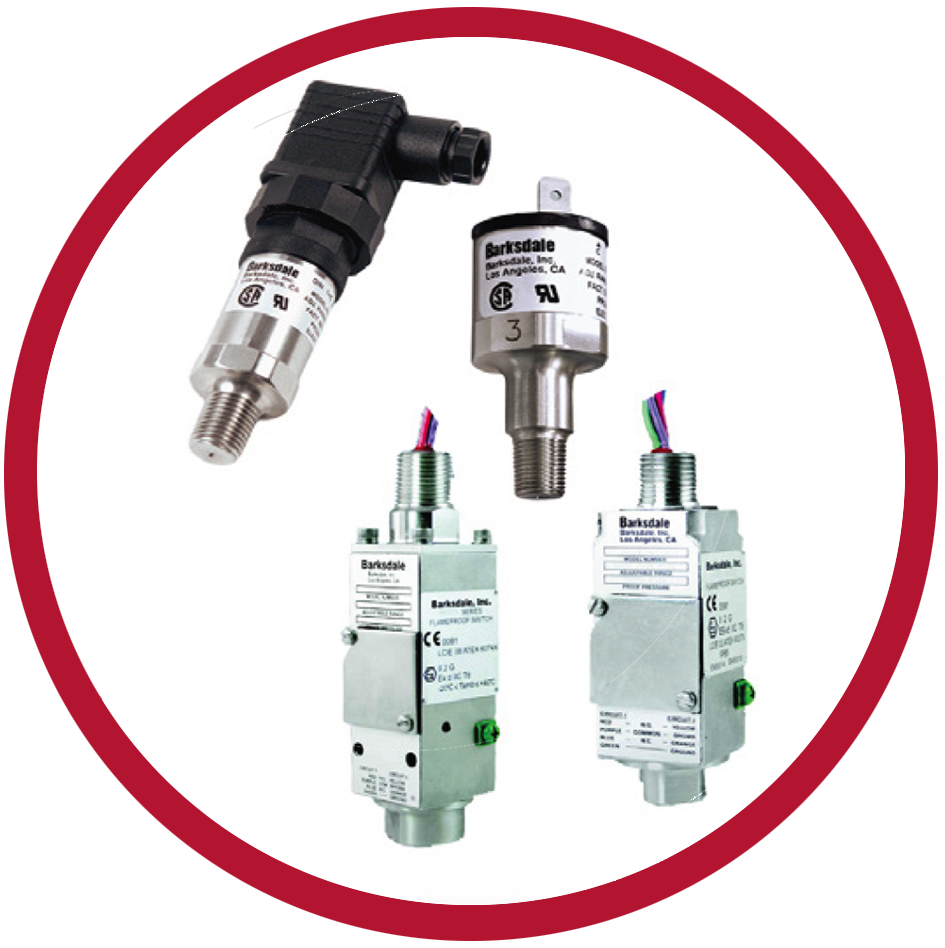

Compact Mechanical Switches
- Adjustable Ranges from 2 to 10,000 PSI [0.1 to 690 bar]
- Field Adjustable or Factory Set with Tamper Proof Option
- General Purpose and Explosion Proof Designs
- SPST, SPDT or DPDT Relay Options
- NEMA Types 1, 4, 4X, 7, and 9
- UL, CSA, ATEX, and IECEx Approvals

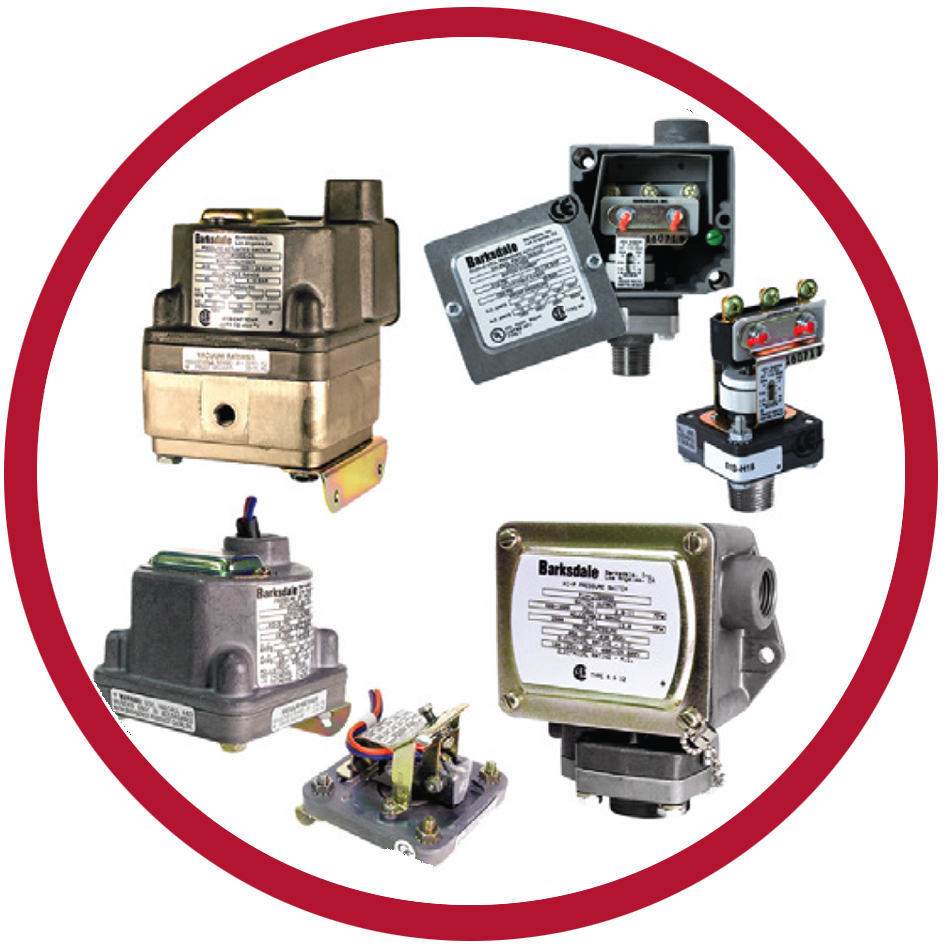

Mechanical Switches
- Adjustable Pressure Ranges from Vacuum to 1,600 PSI [110 bar]
- Adjustable Differential Pressure Ranges from Vacuum to 150 PSI [10.3 bar]
- Single or Independently Adjustable Dual Set Points
- SPDT Relays with Hermetically Sealed Options
- NEMA Types 1, 4, 4X, and 13; IP65
- UL and CSA Approvals
LEVEL
Accurate level monitoring solutions for water storage and processing systems

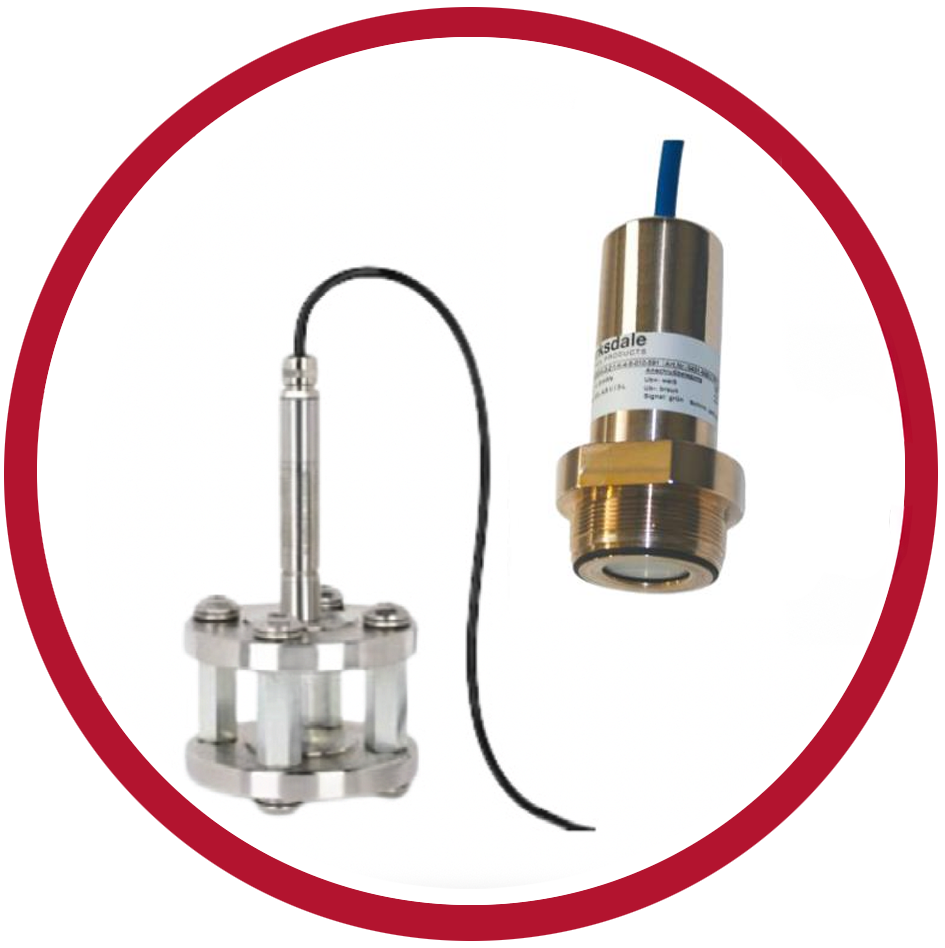

Submersible Level (Hydrostatic Pressure) Transmitters
- Measuring Ranges up to 1,150 ft wc [350 m wc]
- Field Replaceable Sensor Design
- 316L Stainless Steel Body; Optional CuNiFe Alloy
- Optional Flush Sensor with Protective Cage
- 4 to 20 mA Output, Loop Powered
- General Purpose and Intrinsically Safe Designs
- ATEX Approval

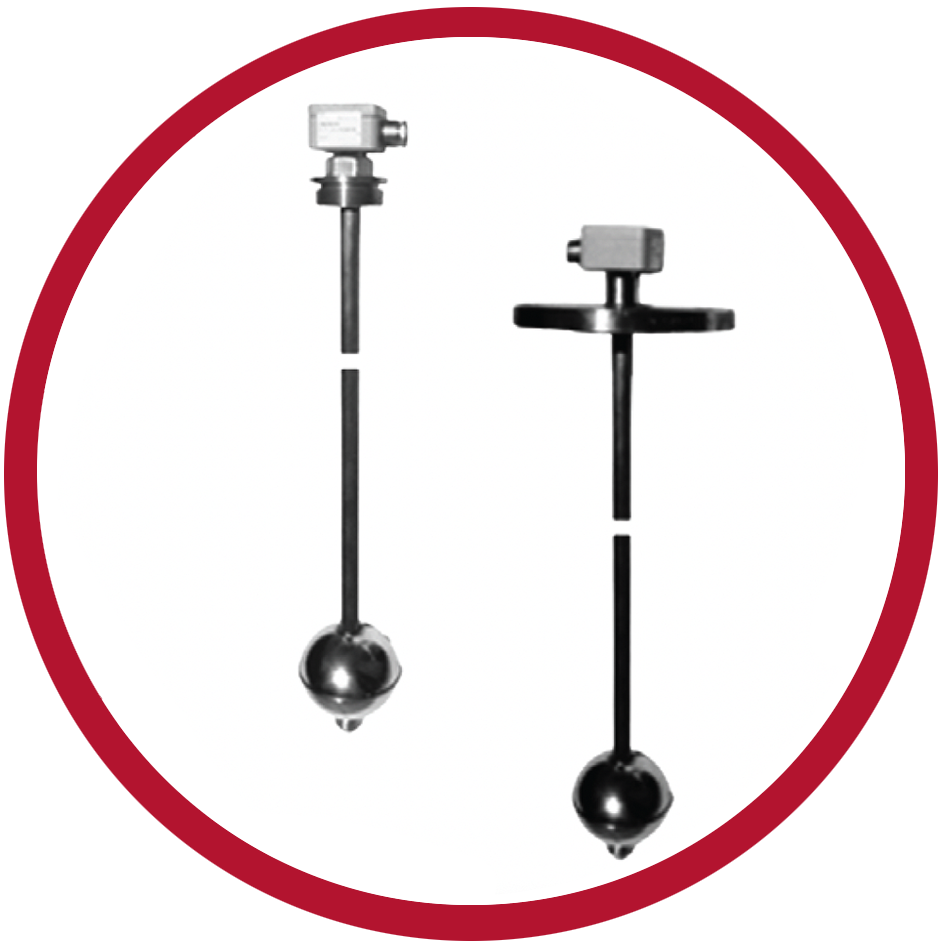

Float Transmitters
- Measuring Ranges up to 19.7 ft [6 m]
- 316Ti and 316L Stainless Steel
- Stainless Steel or Buna-N Floats
- 4 to 20 mA, 0 to 10 Vdc or 0 to 100kΩ Outputs
- Optional RTD or Temperature Switch Output
- Optional Interface Level Measurement
- General Purpose and Intrinsically Safe Designs
- IP65/IP67, ATEX Approval

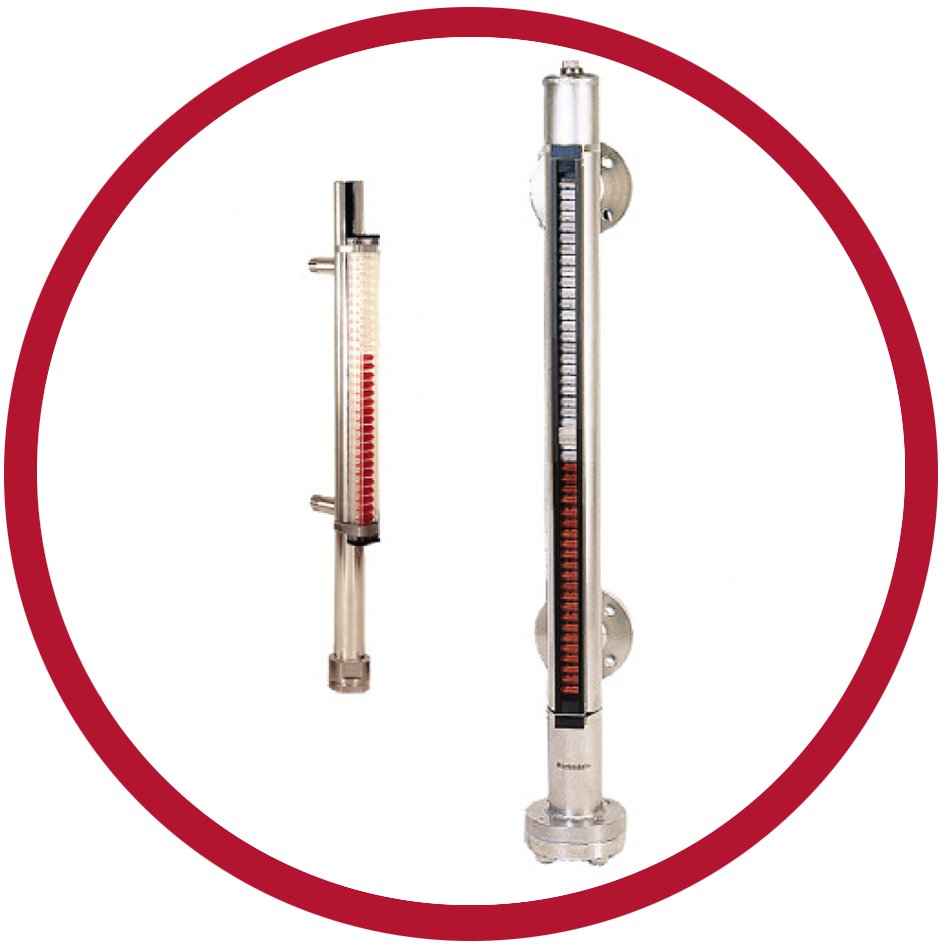

Bypass Indicators
- Standard Measuring Ranges up to 19.7 ft [6 m]; Optional up to 65 ft [19.8 m]
- Operating Pressures up to 960 PSI [64 bar] and Temperatures up to 302°F [150°C]
- 316Ti Bypass Chamber with 316Ti or Titanium Floats
- Highly Visible White/Red Indicator Flags
- Side, Top and Bottom Mounting Options
- Optional SPDT Switches or Analog Outputs
- Optional RTD or Temperature Switch Output
- Optional Interface Level Measurement
- General Purpose and Intrinsically Safe Designs
- IP65/IP67, ATEX Approval

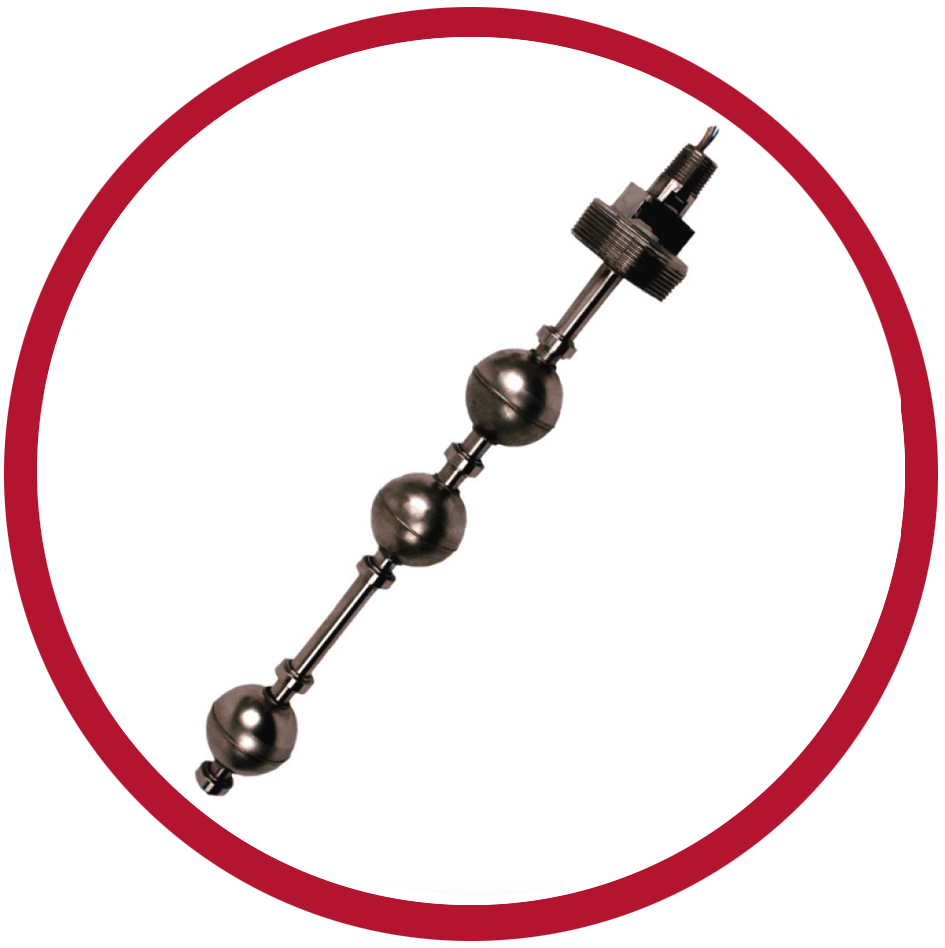

Multi Point Float Switches
- Measuring Ranges up to 9.8 ft [3 m]
- 316 Stainless Steel or Brass Stem with Buna-N or 316 Stainless Steel Floats
- Up to 6 Independent Switch Points
- SPST or SPDT Relay Options
- Optional RTD or Temperature Switch Output
- IP54/IP65/IP68, ATEX Approval
Single Point Float Switches
- 316 Stainless Steel Stem and Float
- Compact Single Point Measurement
- Vertical or Horizontal Mounting
- SPST or SPDT Relay Options
- NEMA Types 4X and 6; IP65/IP67

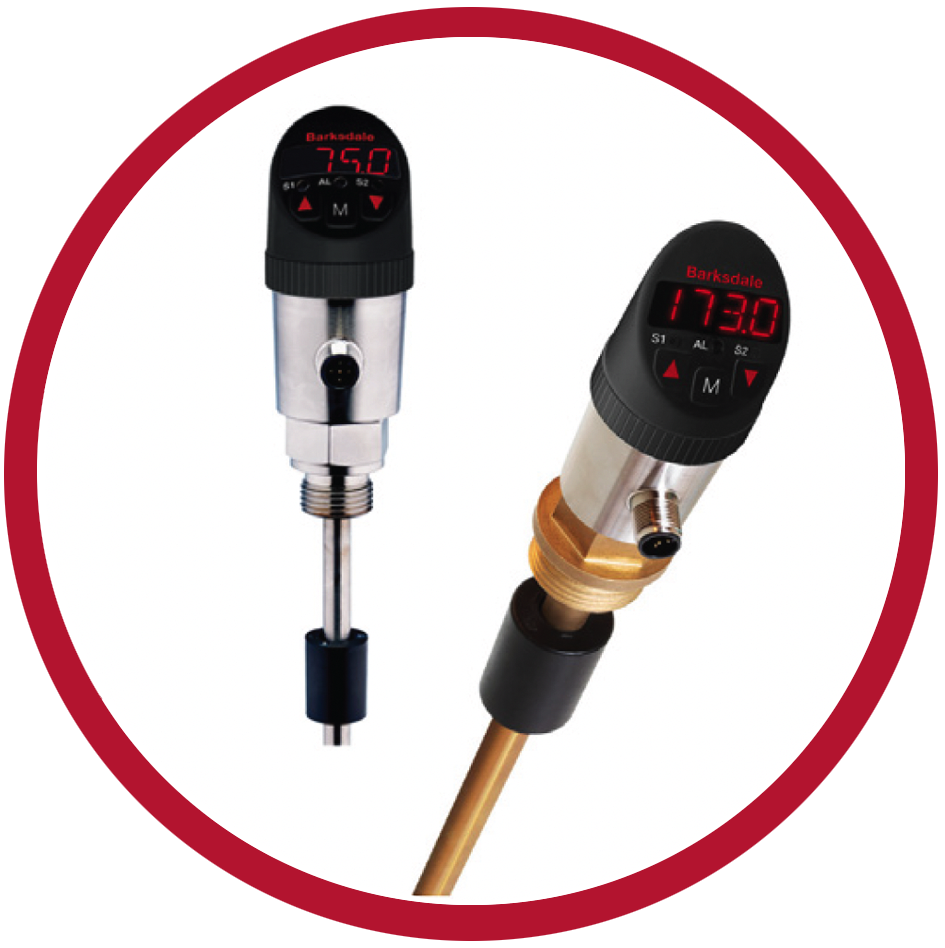

Electronic Float Switches
- 3-in-1 Capability: Switch, Indicator and Transmitter
- Measuring Ranges from 9.8 to 39.4 inches [0.25 to 1 m]
- 316Ti Stainless Steel or Brass Stem with Buna-N Float
- Single or Dual Switch Point Options
- 4 to 20 mA, 0 to 10 Vdc or IO-Link Outputs
- 320° Rotatable Multifunction Display
- Field Programmable via Tactile Keys
- NEMA Types 4X and 6; IP65/IP67
TEMPERATURE
Reliable temperature monitoring and control for water treatment processes

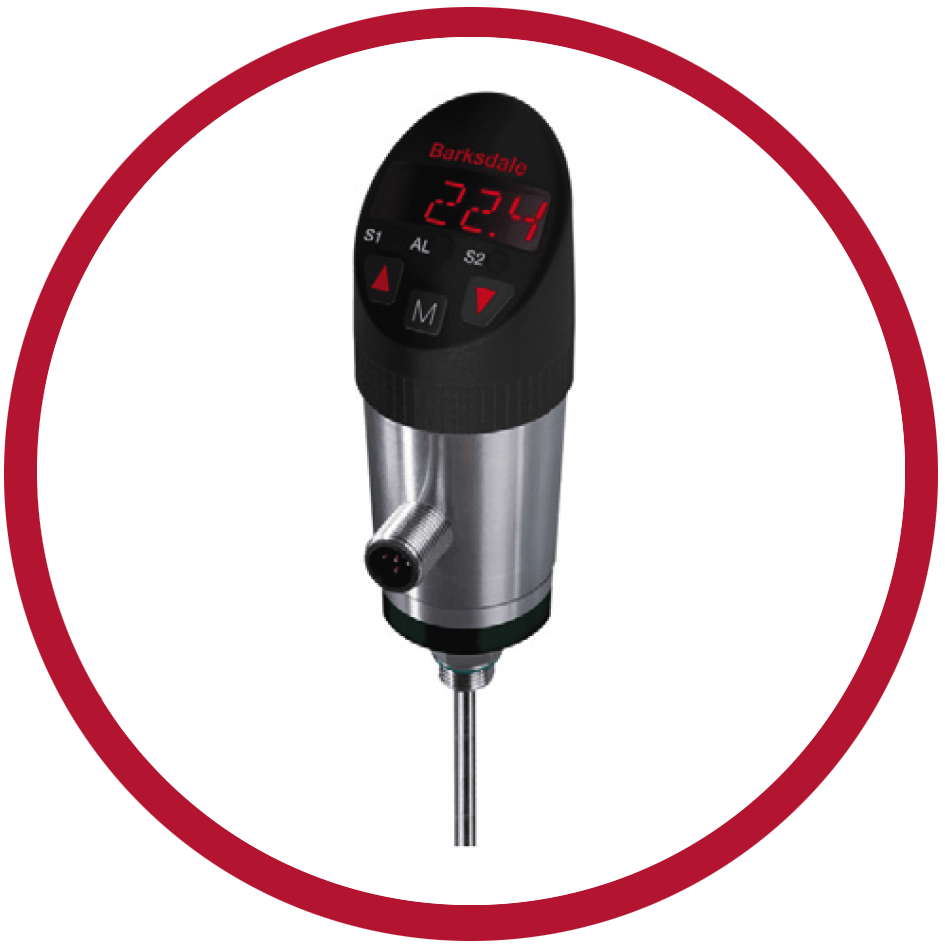

Electronic Switches
- 3-in-1 Capability: Switch, Indicator and Transmitter
- Measuring Ranges from -22°F to 284°F [-30°C to 140°C]
- Single or Dual Switch Point Options
- 4 to 20 mA, 0 to 10 Vdc or IO-Link Outputs
- 320° Rotatable Multifunction Display
- Field Programmable via Tactile Keys
- NEMA Types 4X and 6; IP65/IP67

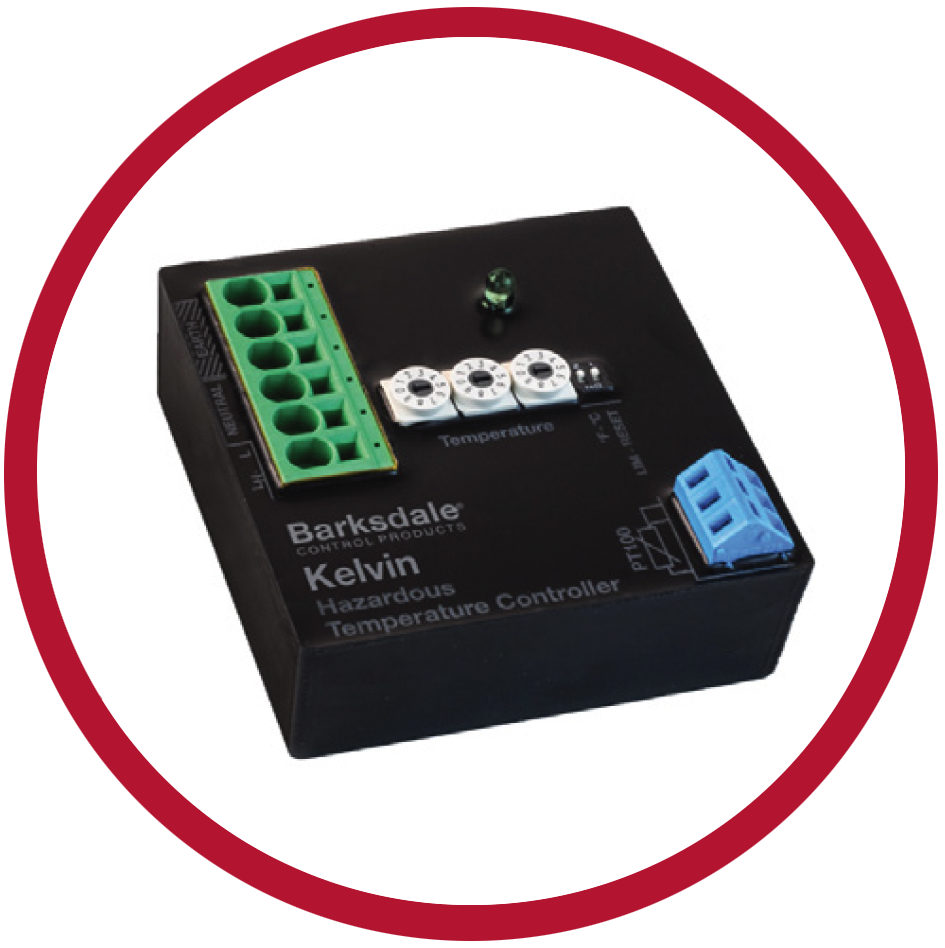

Electronic Thermostats
- Multifunction Controller/Limiter
- Operating Ranges from 32°F to 932°F [0°C to 500°C]
- Accuracy: ±0.5% FSO
- Platinum RTD [Pt100] Input, Lead Wire Compensated
- 30A Power Relay
- 2A SPDT Alarm Relay Option
- Modbus RTU Interface
- Optional Bluetooth Configuration
- ATEX and IECEx Approvals

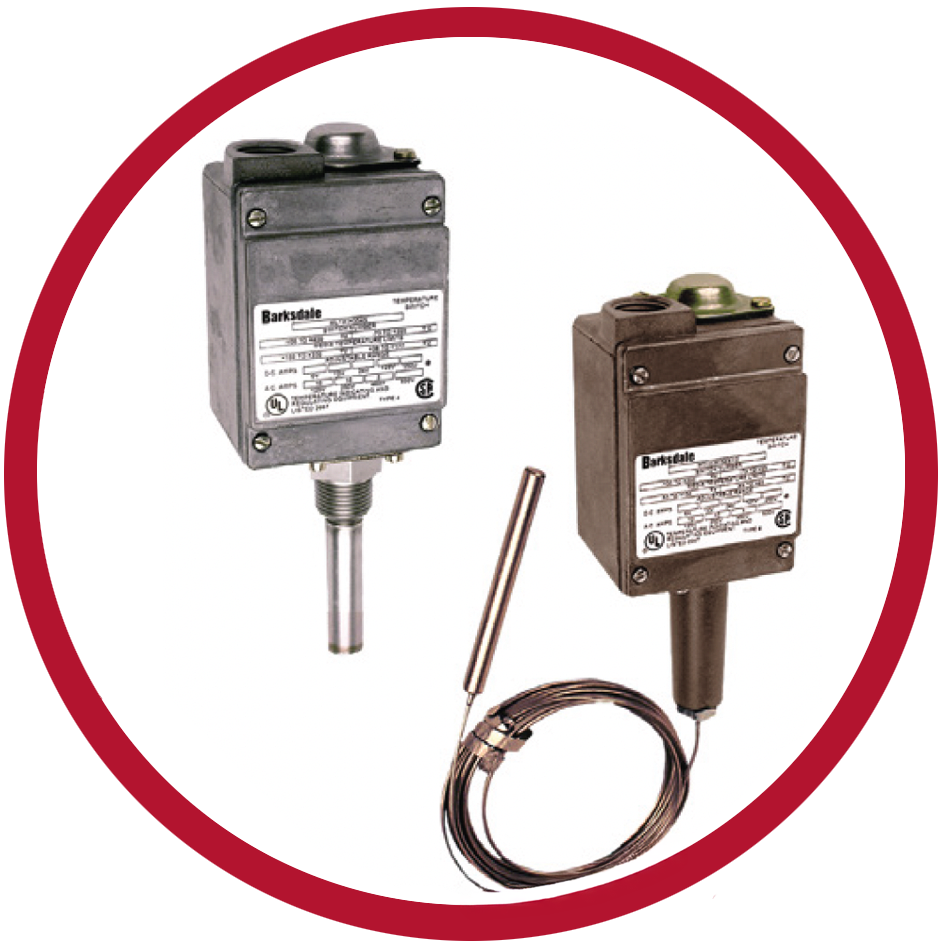

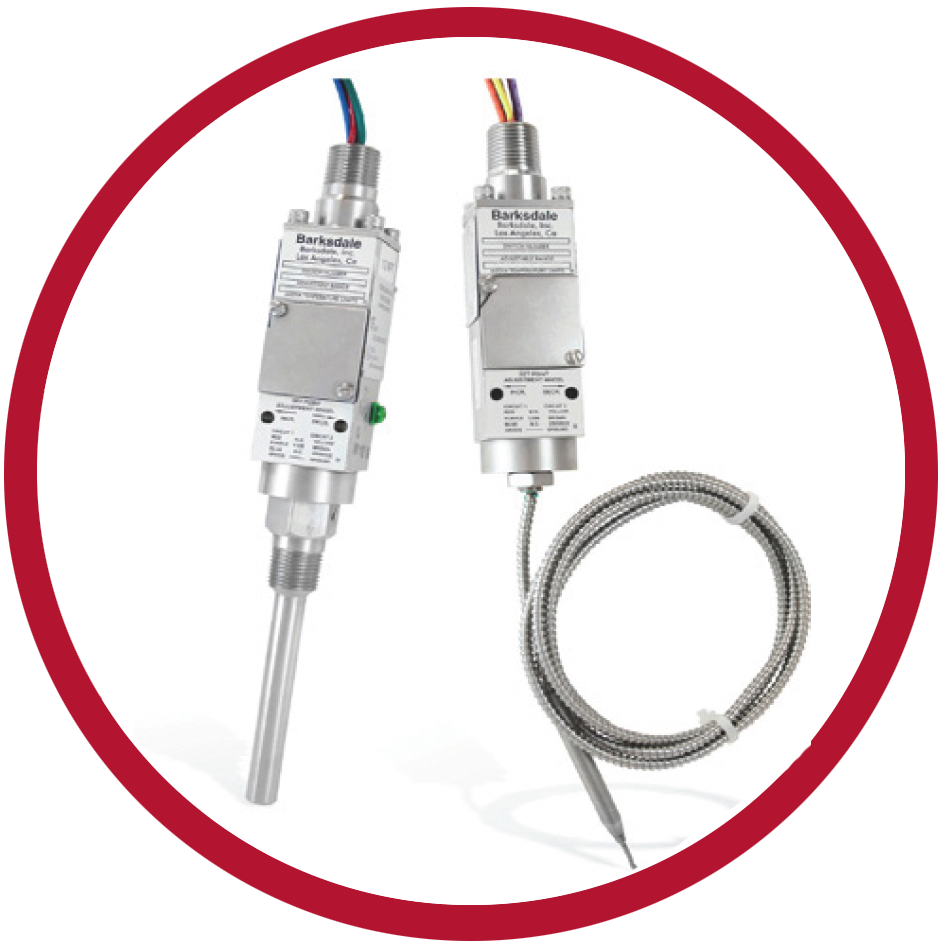

Compact Mechanical Switches
- Adjustable Ranges from -10°F to 330°F [-23°C to 165°C]
- Integral or Remote Mounted Bulb/Capillary
- Field Adjustable or Factory Set
- Explosion Proof Design
- SPDT or DPDT Relay Options
- NEMA Types 4X, 7 and 9
- UL, CSA, ATEX, and IECEx Approvals

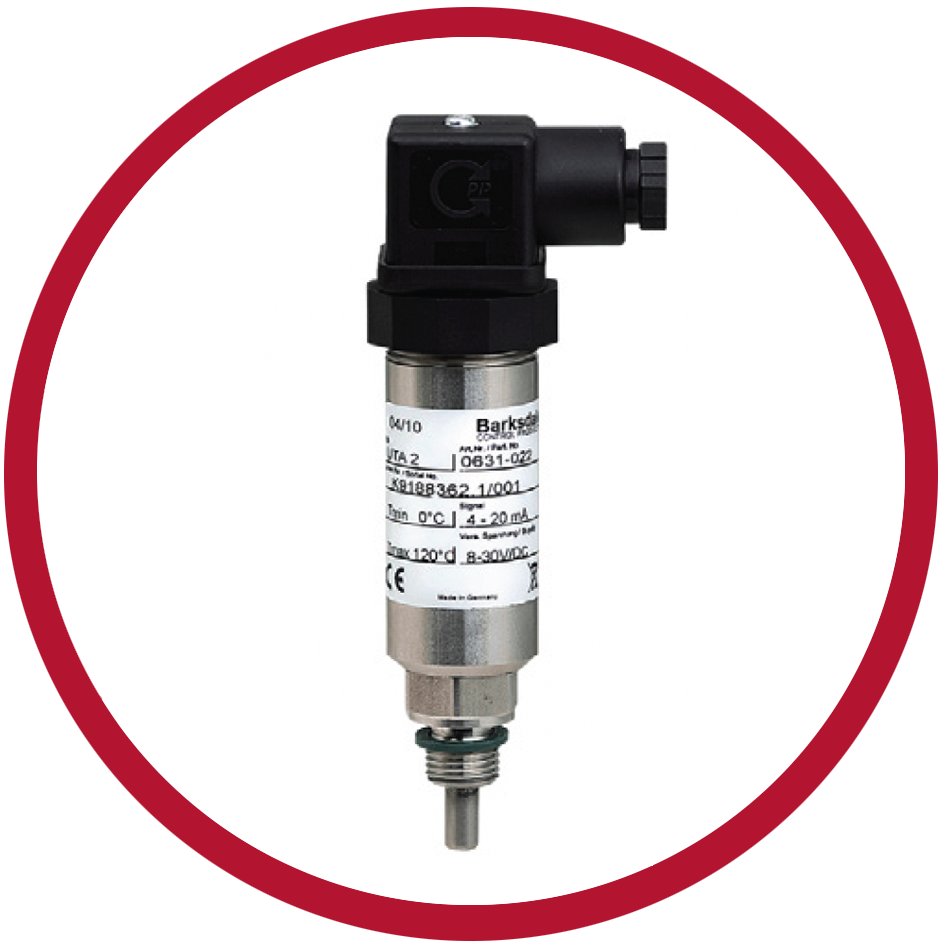

Transducers/Transmitters
- Measuring Ranges from -22°F to 302°F [-30°C to 150°C]
- Accuracy: ±0.5% FSO
- Platinum RTD [Pt100]
- Compact Design
- 316Ti Stainless Steel
- 4 to 20 mA or 0 to 10 Vdc Analog Outputs
- IP65/IP67
The Challenge Today
Potable water remains one of our largest challenges globally. Providing reliable and sustainable sources of clean water is critical. Treatment and distribution are driving newer and more efficient processing technologies to address the challenges of water scarcity.
Barksdale's Customized Solutions
Extended pressure, temperature ranges
Barksdale can customize their instruments to operate beyond standard specifications, allowing them to function reliably in extreme pressure or temperature conditions that typical off-the-shelf products cannot handle.
Product certification
The company can obtain specific regulatory approvals and certifications (such as explosion-proof, intrinsically safe, or industry-specific standards) required for your particular application or geographic region.
Custom outputs; Communication protocols
Instruments can be configured with specialized output signals (analog, digital, or fieldbus) and communication protocols (HART, Modbus, IO-Link, etc.) to seamlessly integrate with your existing control systems.
Electrical connection; Wire cable, color and length
The electrical interface can be customized with specific connector types, cable materials, wire color coding, and exact cable lengths to match your installation requirements and wiring standards.
Process connection; Port size and location
The physical connection points where the instrument interfaces with your piping or vessels can be customized with specific thread types, fitting sizes, and port positions to match your system design.
Design and validation for specific media compatibility
Instruments can be engineered and tested to ensure reliable operation with aggressive, corrosive, or unusual process fluids that might damage standard materials.
Wetted material (fitting, diaphragm, O-ring)
All components that contact the process media can be constructed from specialized materials (exotic alloys, specific elastomers, etc.) to ensure chemical compatibility and longevity in your specific application.
Factory setpoints for pressure and temperature switches
Switch activation points can be precisely calibrated and locked at the factory to your exact specifications, eliminating field adjustment time and ensuring consistent operation.
Level or temperature custom probe lengths
Sensing probes can be manufactured to exact insertion depths or lengths required for your specific tanks, vessels, or piping configurations.
3D Product Configurator
Save time finding the right solution with Barksdale's robust and easy to use 3D product configurator. Configure your solution online and get exactly what you need.
Build Your Solution →Global Presence
With facilities in North America, Europe and Asia, we're positioned to support you worldwide
