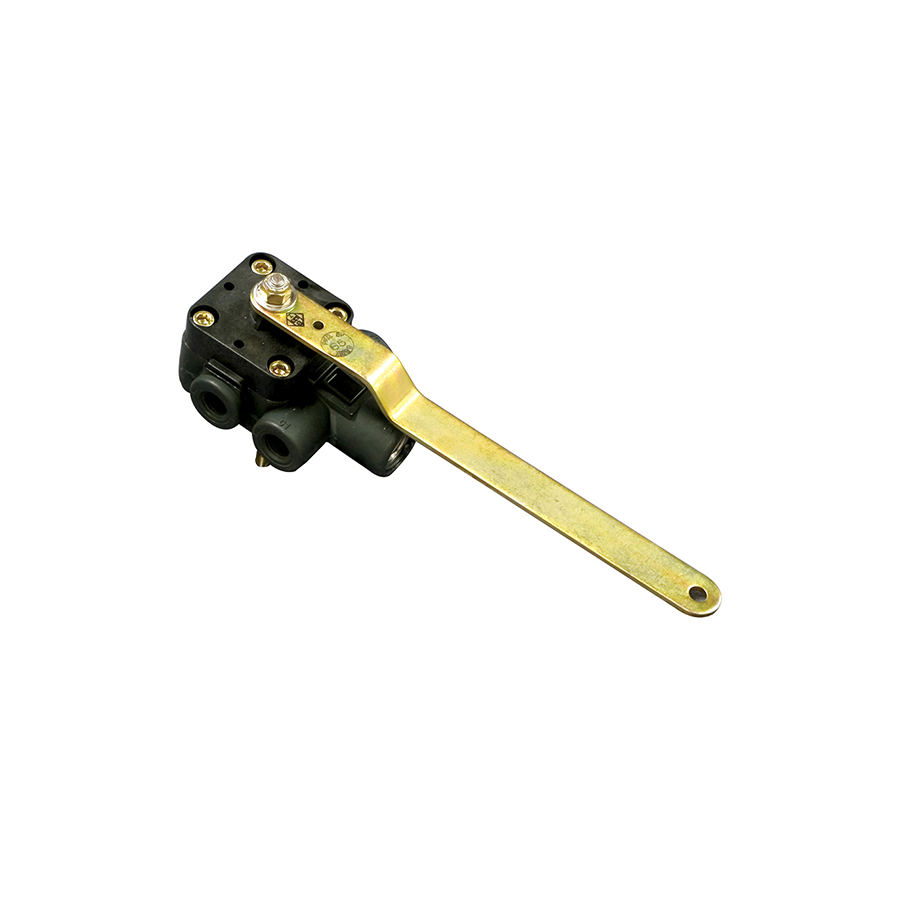

Series 54341- Chassis Dump Valve

Height Control Air Suspension Valve with Integral Reverse Dump

Reverse Integrated dump - relies on negative air pressure to actuate the dump feature


The 54341 Series relies on negative air pressure to actuate the dump feature. This feature allows the seamless integration of the reverse dump valve into the trailer parking brake system. When parking brakes are set, the negative pressure that allows the brakes to lock will also allow the dump feature to be actuated. The negative air pressure allows the dump valve to return to its "normally open" state and exhaust the trailer air suspension.

  • Shear-Seal® technology provides superior peformance and durability
  • Automatically exhaust trailer air springs when parking brake system is engaged
  • High-flow design for rapid fill and exhaust
  • Integrated dump feature reduces installation parts and costs while minimizing leakage points
  • Trailer
  • Air Suspension Systems Replaces:
    • Hadley: H00500CA w/ HPB500-7
    • Haldex: 90554648 or 90054007 w/90554902
