How Barksdale Won a Critical Medical Gas Monitoring Application
In healthcare, even minor system disruptions can have serious consequences. When a leading medical equipment manufacturer looked to strengthen the performance and safety of its medical gas pipeline systems, they needed a partner that could meet strict compliance standards while delivering uncompromising dependability.
That’s where Barksdale delivered.
Understanding the Challenge

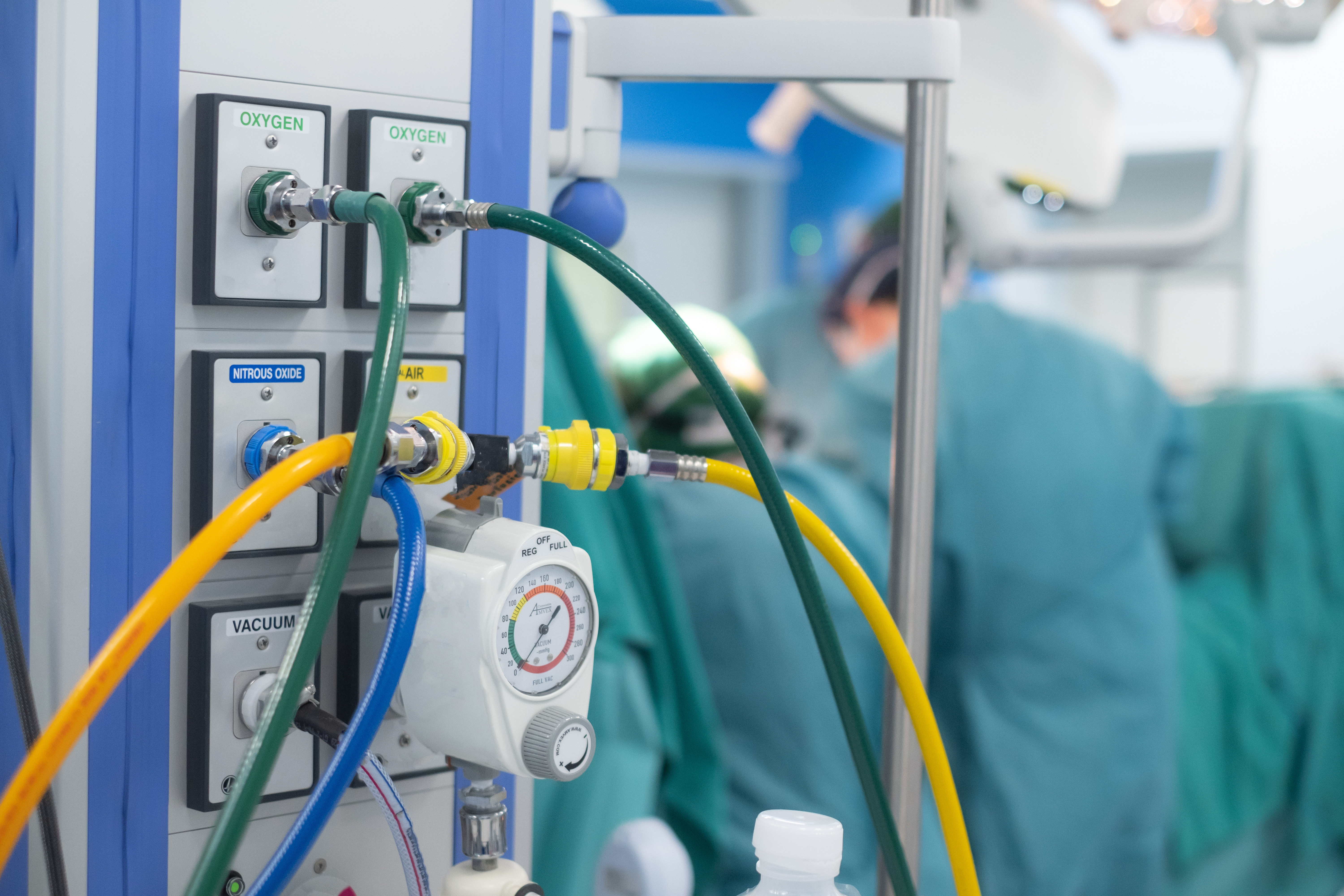

Medical gas pipeline systems are the backbone of modern healthcare facilities. They transport oxygen, medical air, and vacuum to patient care areas, operating rooms, and critical care environments. Any deviation in pressure or vacuum levels must be detected immediately to protect both patients and staff.
To meet strict codes such as NFPA 99, these systems require continuous, fail-safe monitoring across multiple points, including:
-
Master alarm panels, monitoring compressors, vacuum pumps, and manifolds
-
Area alarm panels, ensuring pressure stability in each hospital zone
-
Pipeline branches and risers, detecting abnormal conditions before they reach patient care spaces
For this manufacturer, the challenge was clear: implement a monitoring solution that would perform reliably under all conditions—even if electronic systems failed.
Why Mechanical Pressure Switches Were the Right Choice
The manufacturer made a strategic decision to use mechanical pressure and vacuum switches instead of purely electronic sensors—and for good reason.
Mechanical switches provide direct physical sensing of pressure changes, using a diaphragm that reacts instantly to system fluctuations. This movement activates a snap-action switch, delivering a dependable signal without relying on software or complex electronics.
This approach brings several critical advantages:
Reliability Through Simplicity
Mechanical switches eliminate the risk of software errors, signal drift, or electronic failure. The result is consistent, repeatable performance in environments where reliability is non-negotiable.
Fail-Safe Operation
Because they operate mechanically:
-
They continue functioning during power outages
-
They provide a direct physical trigger for alarms
-
They ensure life-safety systems remain operational under all conditions
Code Compliance and Integration
Medical gas systems must meet strict regulatory requirements. Mechanical switches support compliance by offering:
-
Normally open and normally closed contact options
-
UL-listed configurations suitable for medical environments
-
Flexible integration with a variety of alarm panel designs
Built for Harsh Environments
With NEMA 4 watertight enclosures, these switches are protected from moisture and contaminants commonly found in hospitals, ensuring long-term durability.
The Barksdale Solution: Proven Mechanical Switches
To meet these requirements, Barksdale provided a tailored solution featuring three key products:

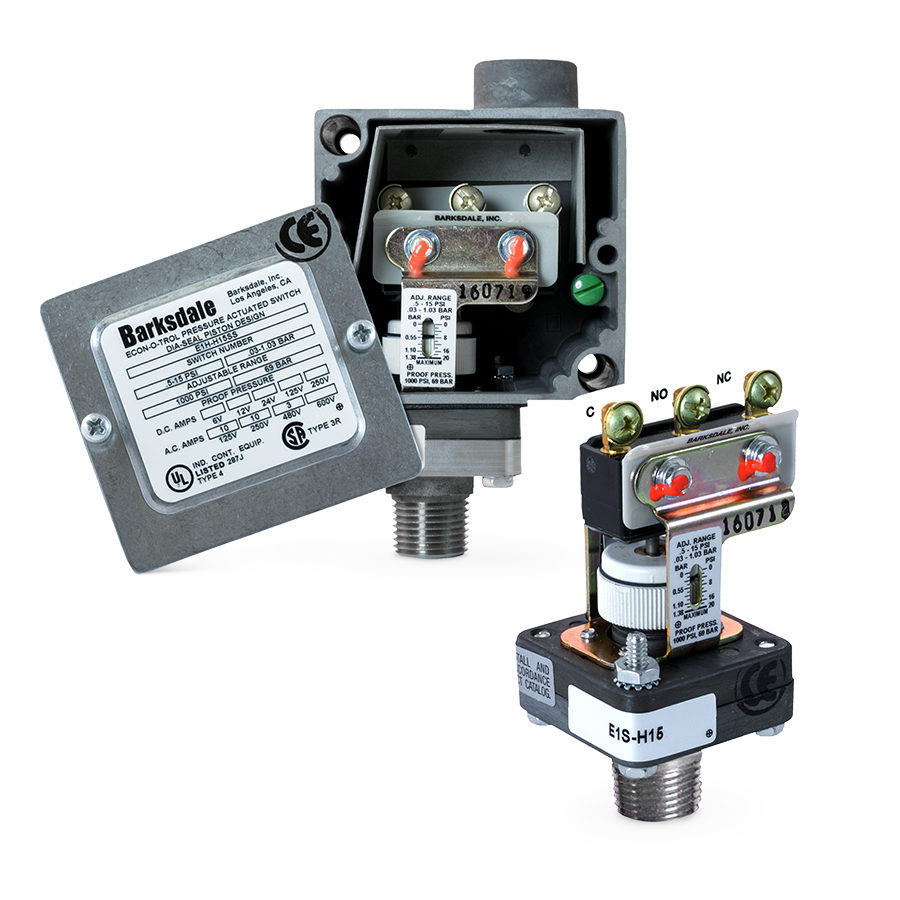

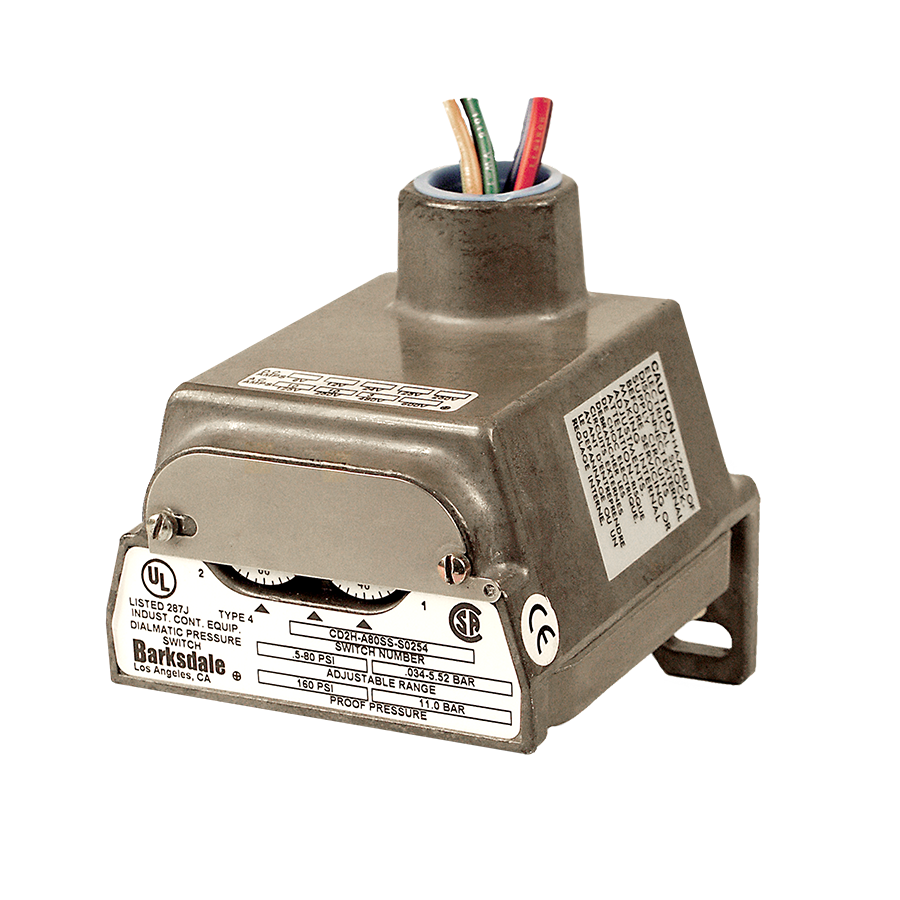

CD1H, CD2H, and E1H Mechanical Pressure Switches
These housed diaphragm pressure switches are specifically designed for demanding industrial and medical applications. Their rugged construction and reliable performance made them an ideal fit for medical gas systems.
Key features include:
-
Housed diaphragm design for accurate, repeatable sensing
-
Snap-action switching for fast and reliable signal output
-
Field-adjustable setpoints, allowing customization per installation
-
Compact, durable housings suited for tight installation spaces
-
Compatibility with both pressure and vacuum monitoring applications
Each model played a role across the system:
-
E1H supported critical monitoring at master alarm panels
-
CD1H and CD2H provided dependable control at area alarms and pipeline branches
This combination allowed the manufacturer to standardize on a single, proven technology while still addressing different pressure ranges and installation needs.
Vacuum monitoring requires a high level of accuracy, and Barksdale’s switches delivered:
-
Adjustable vacuum setpoints for precise alarm activation
-
Factory preset options aligned with common medical standards
-
Reliable operation across a wide measurement range
Installers were able to fine-tune alarm thresholds to match specific facility requirements, ensuring both compliance and optimal system performance.
Why Barksdale Won the Business
Ultimately, the decision came down to trust and performance.
Barksdale demonstrated the ability to deliver:
-
Highly reliable, mechanically driven solutions
-
Code-compliant products ready for medical environments
-
Fail-safe operation independent of electronic systems
-
Flexible, field-adjustable configurations
-
Proven durability in demanding applications
By aligning with the manufacturer’s need for simplicity, safety, and long-term reliability, Barksdale positioned itself as the clear choice.
In life-safety applications like medical gas systems, every component must perform without fail. Mechanical pressure and vacuum switches remain a trusted solution because they offer something electronic systems cannot always guarantee—certainty through physical operation.
With the CD1H, CD2H, and E1H, Barksdale delivered exactly that, helping ensure safe, compliant, and reliable monitoring across critical healthcare infrastructure.
