Dynalco® Digital Speed Switch & Transmitter

Description

Reliable, accurate over/under speed protection, digital speed transmitter with models up to 4 standard relay set-points and LED or keypad configuration display options.

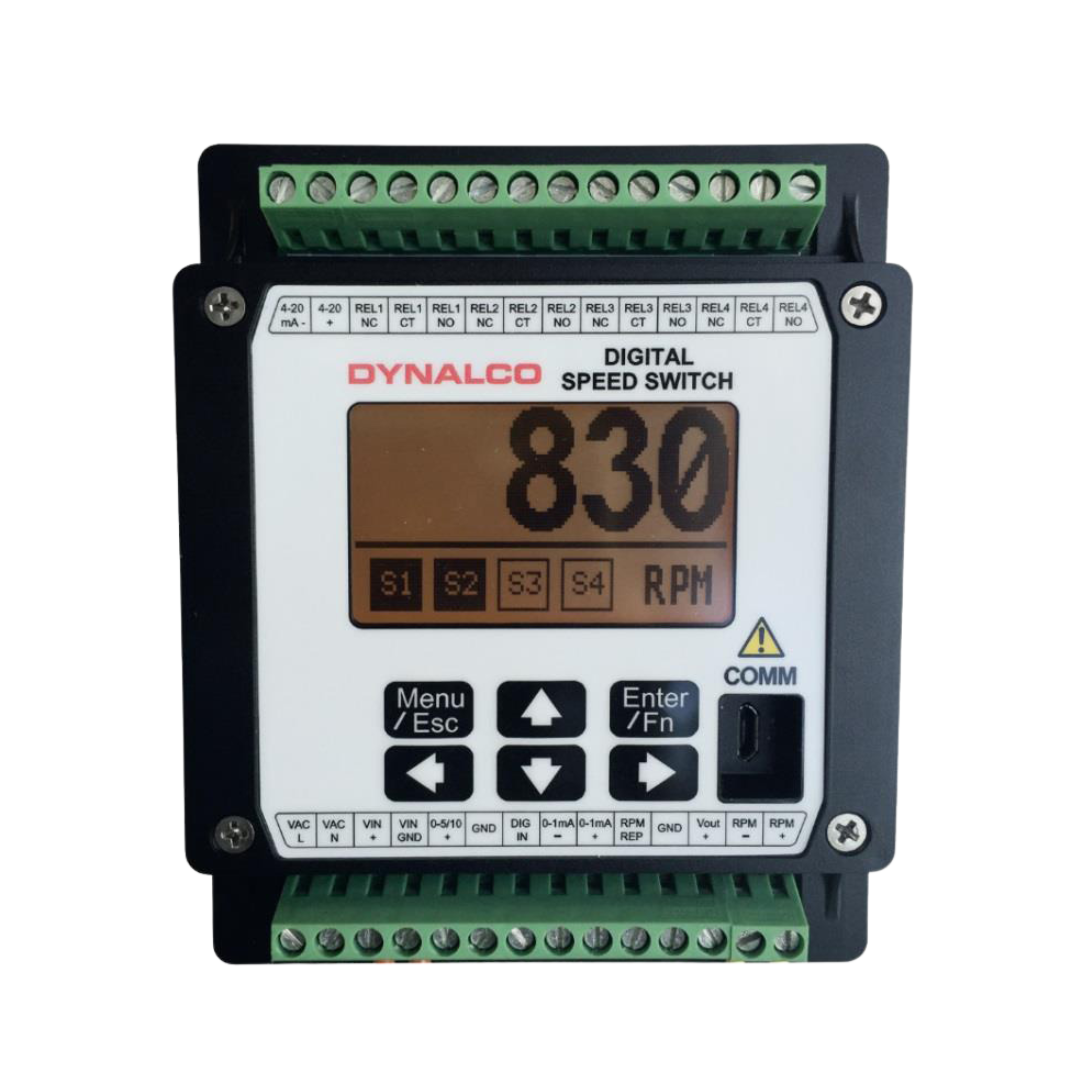

The SST7000 Digital Speed Switch and Transmitter uses a pulse or frequency input to provide an accurate 4-20 mA output or 0-5/0-10 VDC linear output ready for direct interface with machine condition monitoring devices or systems. The available input isolation option helps resolve ground loop and signal conversion challenges. The devices accept sinusoidal and square wave inputs from variable reluctance and digital speed sensors.

The SST7000 Speed Switch can be easily programmed in a matter of a few minutes with a PC using a USB connection. Phoenix connectors on the units allow for quick dis-connect and overall ease of wiring.

Software

PC software for communications and configuration: Click here

Features

• Accepts 2 or 3-wire speed sensors
• 0-50 KHz input frequency range
• 4-20 rnA output (isolated)
• 0-5 or 0-10 VDC linear output
• 50 msec (std) or 10 msec (opt) response time
• 0, 1, 2 or 4 SPDT relays
• Failed (open) pickup sensing
• Square wave repeater output
• 10-36 VDC input supply power
• Available input isolation transformer
• PC programmable over USB port
• Front Keypad programmable (for models with LCD Display)
